MDVR SKU ED08R

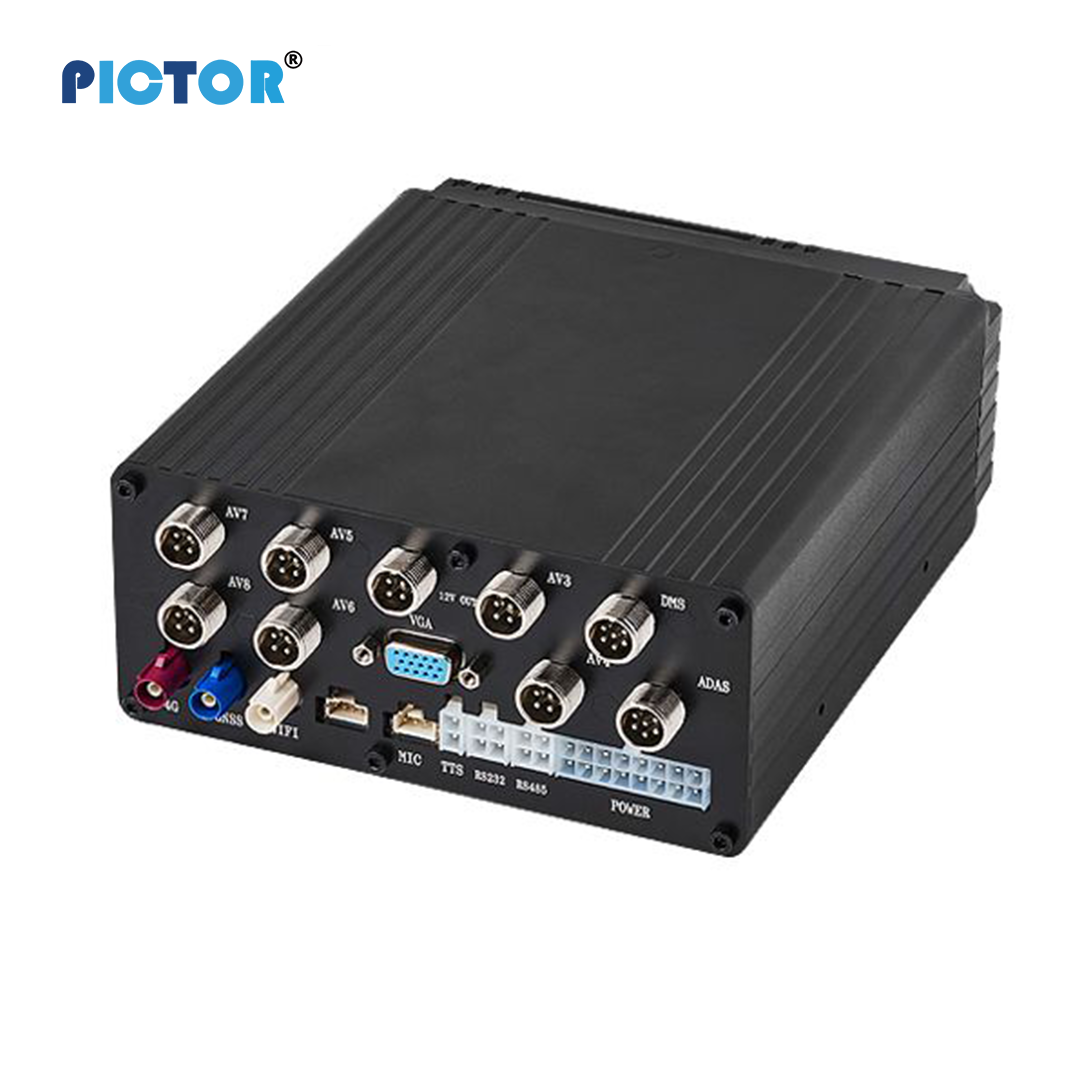

Pictor ED08R AI MDVR – 8-Channel Enterprise Mobile DVR

Pictor ED08R is an enterprise-grade 8-channel AI Mobile Digital Video Recorder (MDVR) engineered for large fleet operations. Built on Linux OS with 2.0 TOPS AI computing power, it integrates ADAS, DMS, and BSD intelligent safety systems with full HD...

Real-time monitoring
Fleet safety
Cloud dashboard
GPS tracking
Request demo Download datasheet
9,00,000+
Devices sending data via our platform since 2014
7,000+
Paying customers with live vehicles and assets since 2014
118+
Indian cities with active customers since 2014
12+
Years in industry
Overview

About Pictor ED08R AI MDVR – 8-Channel Enterprise Mobile DVR

The Pictor ED08R AI MDVR is designed as a high-capacity vehicle surveillance and safety management system for commercial fleets. It supports 8-channel 1080p/720p recording with H.265/H.264 compression for optimized storage efficiency. Equipped with advanced AI-based ADAS, DMS, and BSD functions, the system enhances driver safety, reduces accident risks, and enables real-time remote monitoring via 2G/3G/4G connectivity. With global GNSS positioning, multiple storage options up to 2TB, wide voltage input (9–36V DC), and industrial-grade temperature tolerance, ED08R ensures stable performance in demanding environments.

  • 8-channel full HD video recording
  • AI-powered ADAS safety alerts
  • Driver Monitoring System (DMS)
  • Blind Spot Detection (BSD)
  • 2.0 TOPS AI processor

Key highlights

8-channel full HD video recording
AI-powered ADAS safety alerts
Driver Monitoring System (DMS)
Blind Spot Detection (BSD)
2.0 TOPS AI processor

Need help choosing?

Talk to our product specialists for fitment, pricing, and rollout planning.

Talk to an expert

Downloads

ED08R MDVR User Manual and Specification (Pictor) ED08R MDVR AI alarm process protocol ED08R MDVR English Video Protocol ED08R MDVR JT808-2013 The terminal communication protocol and data format of the road transport vehicle satellit
Features

Product features

Evaluate these capabilities against your route profile, risk controls, and team workflows.

  • 8-channel full HD video recording
  • AI-powered ADAS safety alerts
  • Driver Monitoring System (DMS)
  • Blind Spot Detection (BSD)
  • 2.0 TOPS AI processor
  • H.265 high-efficiency compression
  • Global LTE band support
  • Multi-GNSS real-time positioning
  • 3-Axis G-Sensor integration
  • Fuel cut-off output control
  • Optional LoRa support
  • FOTA web configuration support
  • Multiple industrial I/O interfaces
Specifications

Technical specifications

Use this table for compatibility checks, deployment planning, and integration review.

Operating System Linux
AI Computing Power 2.0 TOPS NPU
Video Channels 8 Channels
Video Resolution 8 × 1080p or 8 × 720p
Video Compression H.265 / H.264
Cellular Network 2G / 3G / 4G CAT.4
Positioning System GPS / GALILEO / BeiDou / GLONASS
WiFi 2.4GHz
Storage Support SD Card (32GB–512GB, Class 10) + Disk (128GB–2TB)
Input Voltage 9–36V DC
Operating Temperature -30°C to 80°C
Dimensions 170mm × 150mm × 65mm
Weight 1260g
Certification CE, FCC
AI Functions - ADAS Forward Collision Warning (FCW), Pedestrian Collision Warning (PCW), Lane Departure Warning (LDW), Following Distance Alert, Speeding Alert, Harsh Braking Alert, Harsh Acceleration Alert, Harsh Turning Alert, Collision Warning
AI Functions - DMS Distracted Driving Detection, Drowsiness Alert (Eyes Closed / Yawning), Cell Phone Use Alert, Seat Belt Alert, Camera Obstruction Alert, Smoking Alert, Driver Detection Alert
AI Functions - BSD Front Blind Spot Detection, Rear Blind Spot Detection, Left Blind Spot Detection, Right Blind Spot Detection
Power Consumption - Standby 15.8mA @12V
Power Consumption - Full Load (8 Cameras) 1897mA @12V
Audio - Input 9-channel audio with external microphone (2200Ω / 1.1V–6.0V)
Audio - Output 8Ω / 2W Speaker
Sensors 3-Axis G-Sensor
Environmental - Operating Temperature -30°C to 80°C
Environmental - Storage Temperature -40°C to 85°C
Interfaces Standard SIM Card Slot, SD Card Slot, HDD Support, RS232 / RS485, Type-C Debug Port, 4G / GNSS / WiFi Antenna Ports, VIN / ACC / SOS / Brake / Door Sensor Inputs, Fuel Cut-Off Output, 12V OUT & VGA
Features

Key features

  • 8-channel full HD video recording
  • AI-powered ADAS safety alerts
  • Driver Monitoring System (DMS)
  • Blind Spot Detection (BSD)
  • 2.0 TOPS AI processor
  • H.265 high-efficiency compression
  • Global LTE band support
  • Multi-GNSS real-time positioning
  • 3-Axis G-Sensor integration
  • Fuel cut-off output control
  • Optional LoRa support
  • FOTA web configuration support
  • Multiple industrial I/O interfaces
Resources

Downloads & documentation

ED08R MDVR User Manual and Specification (Pictor) PDF download
ED08R MDVR AI alarm process protocol PDF download
ED08R MDVR English Video Protocol PDF download
ED08R MDVR JT808-2013 The terminal communication protocol and data format of the road transport vehicle satellit PDF download
FAQ

Frequently asked questions

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.
A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.
Pictor ED08R AI MDVR – 8-Channel Enterprise Mobile DVR can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.
Pictor ED08R AI MDVR – 8-Channel Enterprise Mobile DVR (Mobile Digital Video Recorder) is a multi-channel video recording system for buses, trucks, and commercial vehicles. It records road and cabin footage, supports multiple cameras, and offers GPS, 4G, and fleet management integration.
Our MDVR systems typically support 2–8 channels. You can add road-facing, driver-facing, and cabin cameras. All feeds are recorded simultaneously and stored on an internal HDD or SD card.
Yes. Our MDVR solutions provide the video and telemetry records typically needed by transport operators for safety governance and compliance workflows.
Pictor ED08R AI MDVR – 8-Channel Enterprise Mobile DVR records in 1080p or 720p per channel depending on the model. H.264/H.265 compression ensures efficient storage. Recordings can be downloaded or streamed live via 4G.
Yes. With 4G connectivity, Pictor ED08R AI MDVR – 8-Channel Enterprise Mobile DVR can stream live video to the fleet management platform. View real-time footage from any camera. Useful for incident response and driver monitoring.
Storage varies by model—typically 256GB to 1TB internal HDD or SD cards. Loop recording overwrites old footage. Critical events can be uploaded to cloud storage for long-term retention.
MDVR pricing depends on channels, storage, and connectivity. Contact Pictor for a quote. We offer solutions for buses, trucks, and special applications. Volume pricing available for fleet orders.
